SpaceMining — a novel RL environment beyond LLM priors

What is SpaceMining?

SpaceMining is a single-agent reinforcement learning environment simulating asteroid mining in a 2D space environment. The agent (mining robot) must collect resources from asteroids, deliver them to the mothership, manage energy consumption, and avoid moving obstacles while maximizing efficiency.

🎯 Novel Benchmark

Custom environment unfamiliar to LLMs for fair evaluation of reward-design capabilities.

⚡ 2D Space Physics

Realistic physics with thrust dynamics, collisions, and gravitational forces in an 80×80 grid.

🔋 Strategic Constraints

Energy management, limited observation radius, and moving obstacles create balanced difficulty.

Task Description

The agent is deployed in a 2D space environment (80×80 grid) with randomly distributed asteroids and a central mothership. The comprehensive task requires balancing multiple objectives:

🎯 Primary Objectives

Navigate and mine resource-rich asteroids
Monitor energy and return to mothership for recharging
Avoid collisions with moving obstacles
Transport resources to maximize efficiency

⚖️ Strategic Balance

Exploration vs exploitation of known resources
Risk vs reward in obstacle navigation
Energy conservation vs aggressive mining
Travel time vs collection optimization

Environment Specifications

Technical specifications for researchers implementing experiments and designing reward functions for the SpaceMining environment.

📊 Action Space

Box(3) - Continuous control

thrust_x and thrust_y: Movement forces
mine_action: Mining activation

👁️ State Space

Box(53) - Structured observations

Agent state: position, velocity, energy, inventory
Asteroid information: positions and resources
Mothership position

🌍 Environment

Grid size: 80×80 units
Asteroids: 8-12 per episode
Moving obstacles: 4-8 hazards
Observation radius: 15 units
Episode limit: 1200 steps

🏆 Rewards

Mining: +8.0 per resource unit
Delivery: +12.0 per delivered unit
Exploration: +3.0 per discovered asteroid
Energy recharge: +0.5 per unit

⚠️ Penalties

Obstacle collision: -10.0
Boundary contact: -1.0
Energy depletion: -10.0
Inventory limit: 100 units max

⚙️ Difficulty

Medium - Balanced challenge

Limited observation radius
Energy management required
Collision avoidance needed
Strategic resource planning

Quick Start Guide

Get started with SpaceMining for your research experiments. The environment is designed to be easy to install and integrate into existing RL pipelines.

🚀 Installation

# Install from PyPI
pip install space-mining

# Or install from source
git clone https://github.com/reveurmichael/space_mining.git
cd space_mining
pip install -e .

🎮 Basic Usage

import gymnasium as gym
from space_mining.envs import make_env

# Create environment
env = make_env(render_mode="human")

# Reset and run
obs, info = env.reset()
for _ in range(1000):
    action = env.action_space.sample()
    obs, reward, terminated, truncated, info = env.step(action)
    if terminated or truncated:
        obs, info = env.reset()

🤖 Agent Training Pipeline

Complete PPO training setup for baseline agent development and reward function evaluation.

from space_mining.agents.train_ppo import train_ppo

def main() -> None:
    # Train with configuration
    model = train_ppo(
        total_timesteps=5_000_000,
        output_dir="runs/ppo_research",
        track_wandb=True,
        wandb_project_name="space-mining-research",
        checkpoint_freq=100_000,
        eval_freq=200_000,
        device="cuda" if torch.cuda.is_available() else "cpu"
    )
    print("Training completed successfully!")

if __name__ == "__main__":
    main()

🎬 Generate Demo GIFs

Create demonstration GIFs from trained models for research analysis.

# Train PPO Agent
python -m space_mining.agents.train_ppo \
  --total-timesteps 5000000 --output-dir runs/ppo --checkpoint-freq 100000 --eval-freq 200000

# Render a GIF
python -m space_mining.scripts.make_gif \
  --checkpoint runs/ppo/final_model.zip --output output_gif/agent.gif --steps 800 --fps 20

These commands provide a straightforward workflow for training agents and generating visual demonstrations for research documentation.

🔧 Research Configuration

Environment parameter customization for controlled experiments and ablation studies.

from space_mining.envs import SpaceMining, EnvironmentConfig

# Create custom configuration
config = EnvironmentConfig(
    max_episode_steps=2000,
    grid_size=120,
    max_asteroids=20,
    observation_radius=25,
    energy_consumption_rate=0.03,
    mining_range=10.0
)

# Initialize with custom config
env = SpaceMining(config=config, render_mode="human")

# Run experiment
obs, info = env.reset(seed=42)
print(f"Environment initialized with {len(env.asteroid_positions)} asteroids")

Demo: Agent Behaviors

The GIF demonstrations showcase different agent behaviors and training outcomes, from successful resource collection to various failure modes and learning phases.

🔍 Early Exploration

Early Exploration · Eval num_timesteps=25000
Initial learning phase

Learning

🔍 Early Exploration (Later)

Early Exploration · Eval num_timesteps=500000
Continued learning

Learning

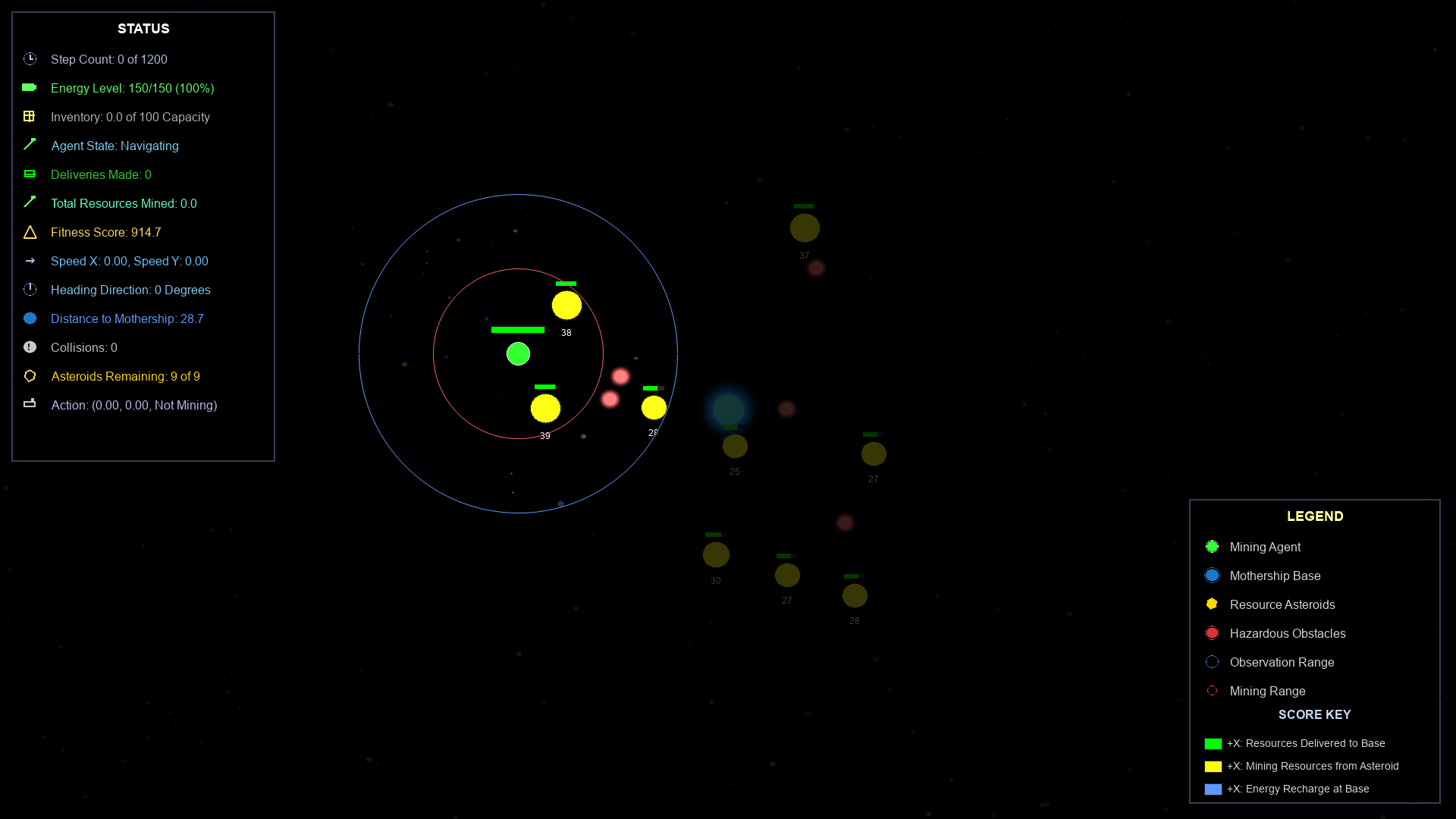

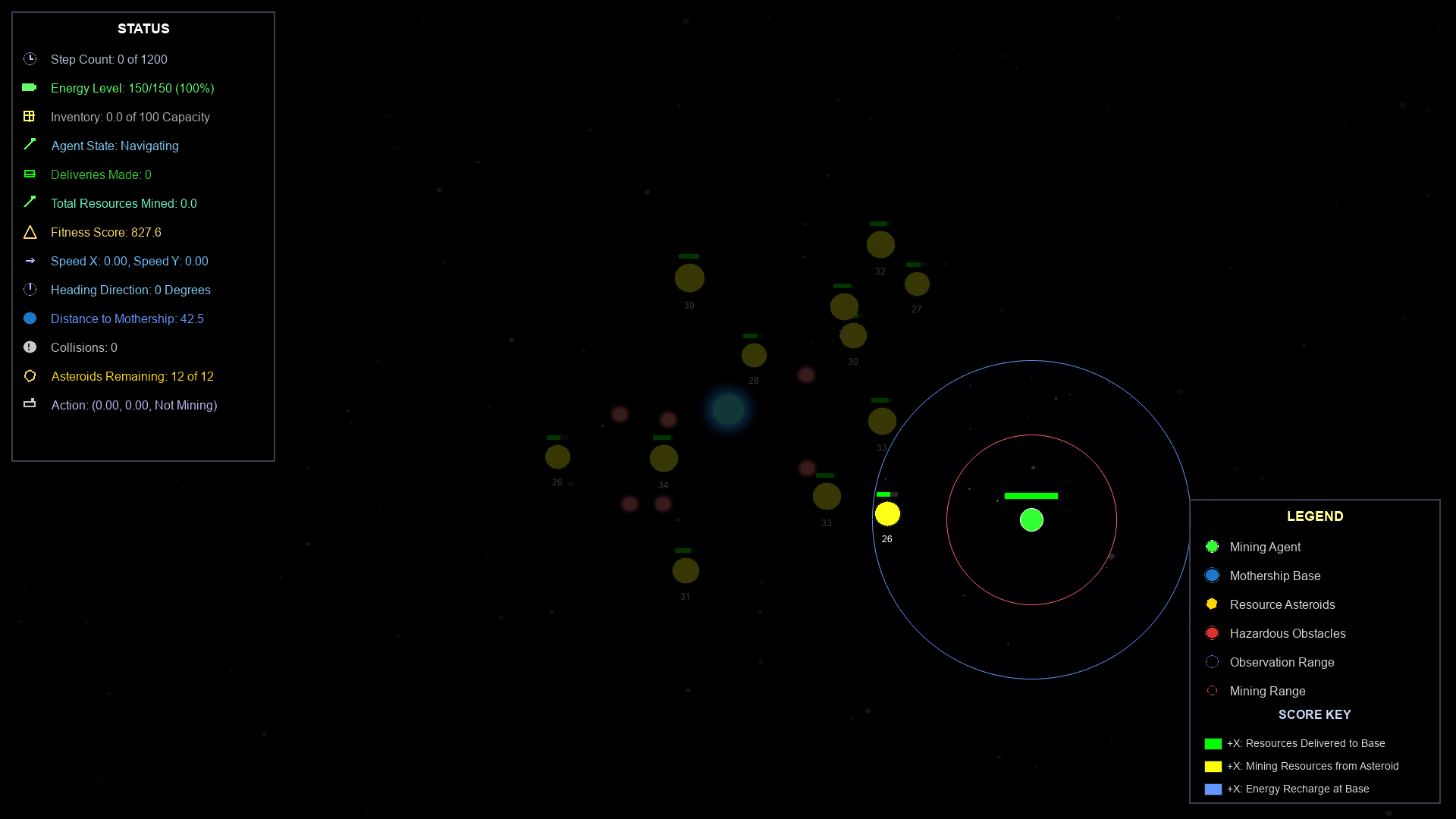

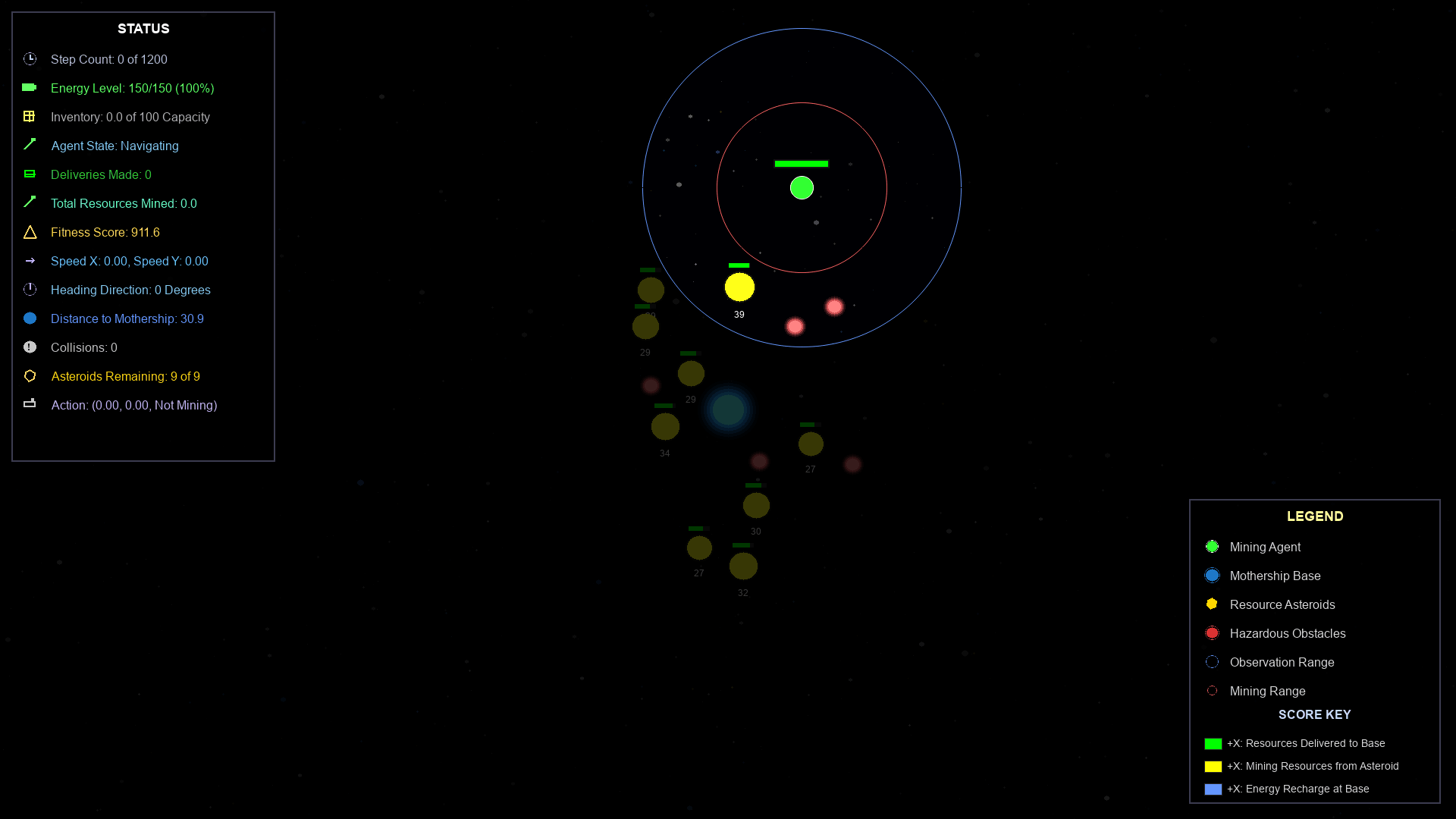

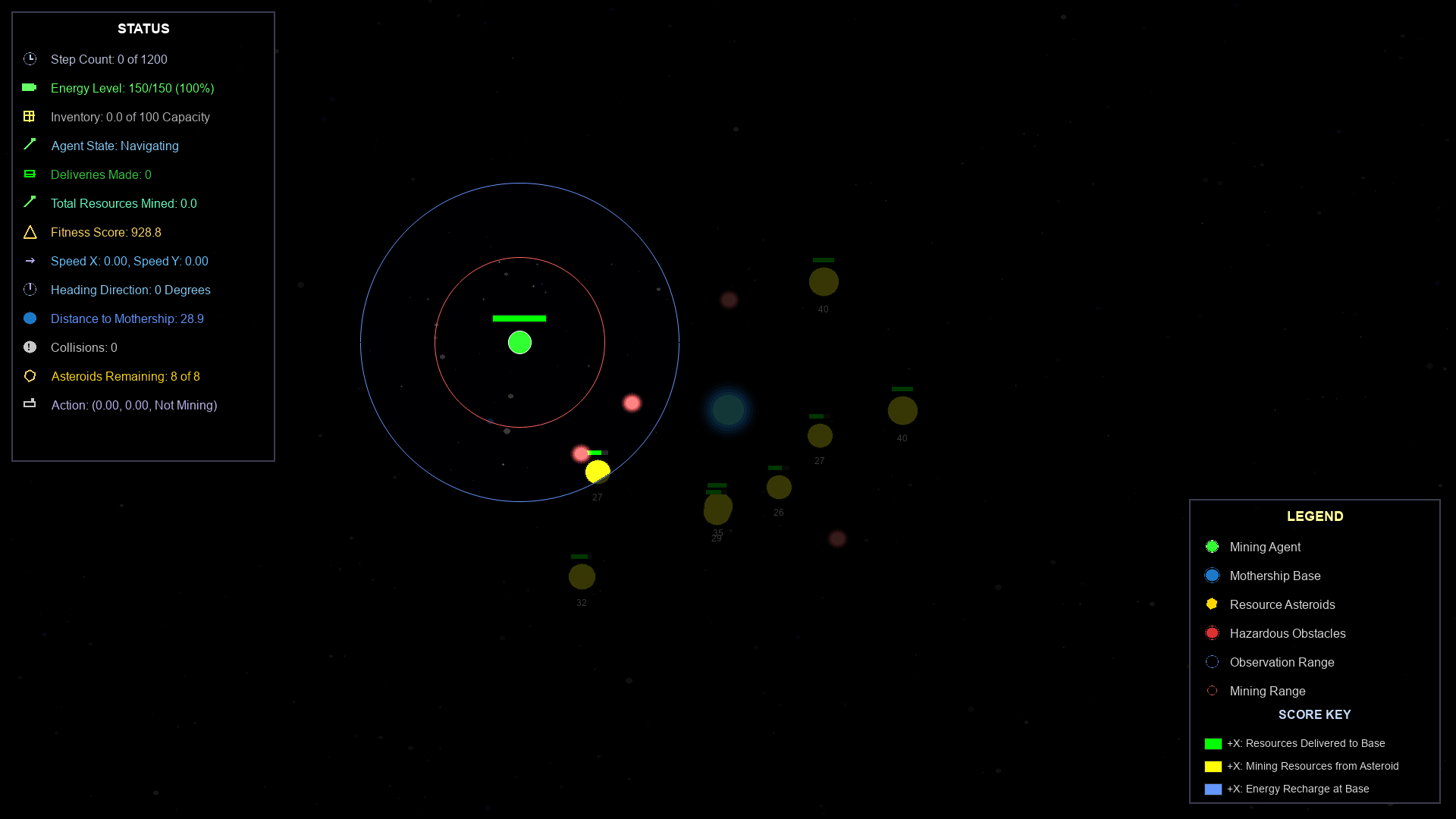

⛏️ Successful Mining

Successful Mining
Strategic resource collection

Success

🏆 Complete Episode

Complete Episode (1200 steps)
Optimal resource collection

Success

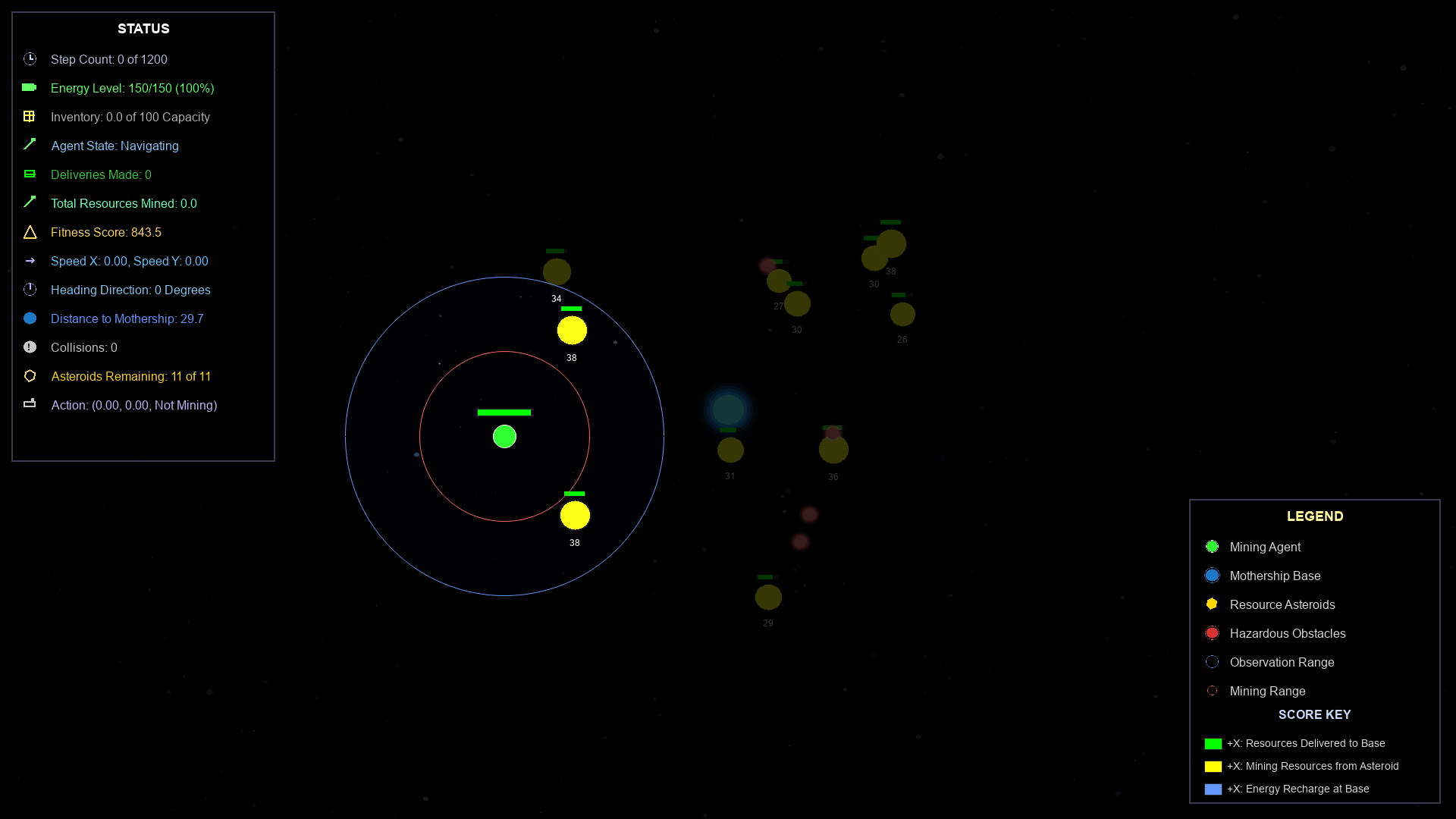

🔋 Energy Depletion

Energy Depletion
Failed to recharge at mothership

Failure

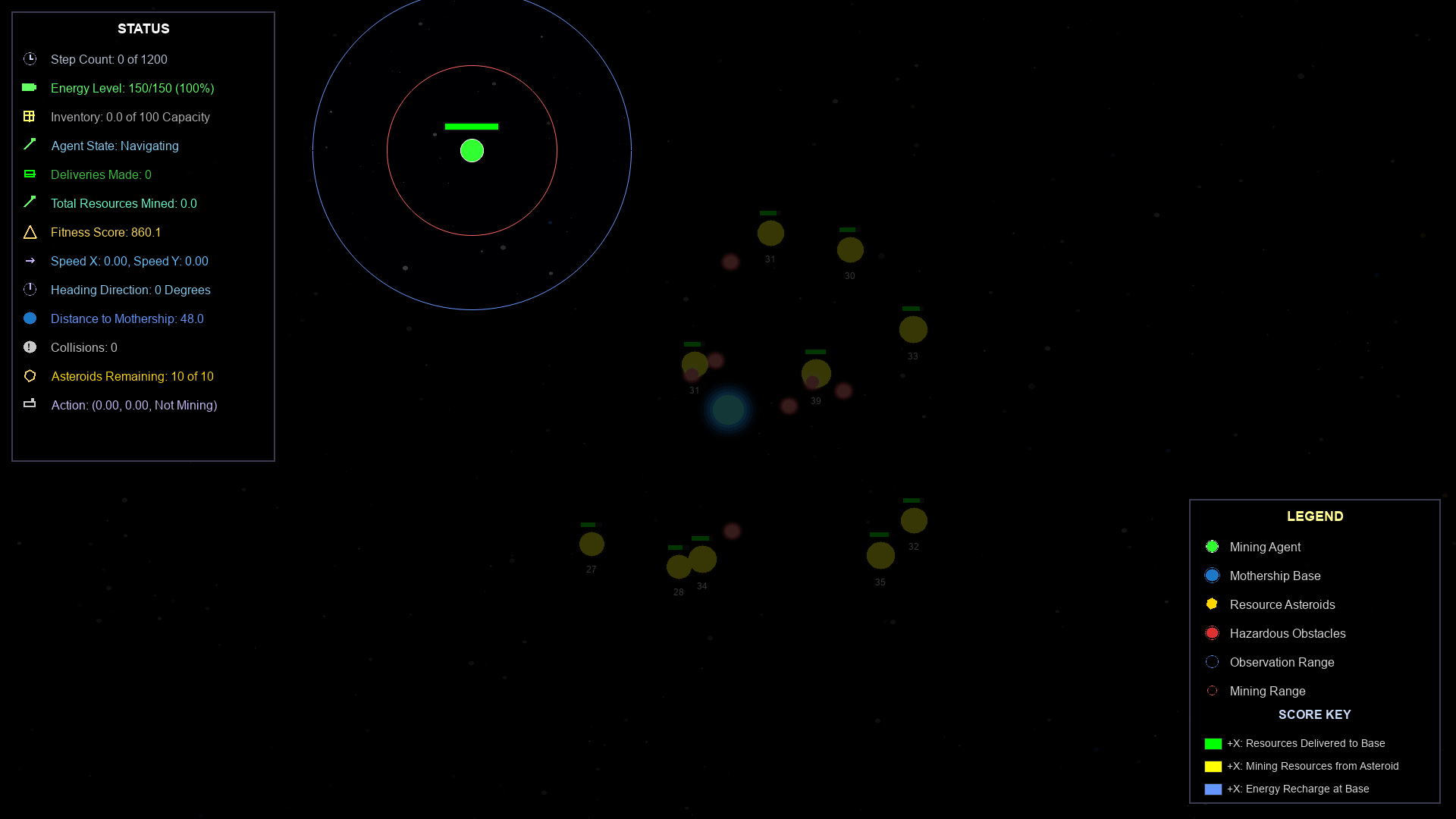

💥 Poor Obstacle Avoidance

Poor Obstacle Avoidance
Multiple collisions

Failure

🎮 Visual Elements Guide

Green Circle: Mining agent (changes color based on state, Green = Exploring, Orange = Mining, Yellow = Carrying Resources)

Blue Circle: Mothership (delivery and recharge point)

Yellow Circles: Resource-rich asteroids (mining targets, changes color based on resource level, Orange = High-resource Asteroids, Yellow = Low-resource Asteroids, Gray X = Depleted Asteroids)

Red Circles: Moving obstacles (collision hazards)

Red Ring: Mining range indicator

Blue Ring: Observation range (partial observability)

Health Bars: Green-to-red gradient bars above asteroids indicate remaining resource levels

Status Display: Real-time information showing energy, inventory, mining progress, and episode statistics
